Use of the ductal curvature index to assess the risk of ductal stenting in patients with duct-dependent pulmonary circulation

Nathalie Mini^, Martin B. E. Schneider, Peter A. Zartner

Department of Cardiology, German Paediatric Heart Centre, University Hospital of Bonn, Bonn, Germany

Contributions: (I) Conception and design: All authors; (II) Administrative support: MBE Schneider; (III) Provision of study materials or patients: MBE Schneider, PA Zartner; (IV) Collection and assembly of data: N Mini; (V) Data analysis and interpretation: All authors; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

^ORCID: 0000-0002-3527-3741.

Correspondence to: Nathalie Mini. Cardiac Catheterization Laboratory, Paediatric Heart Centre, University hospital of Bonn, Campus Venusberg 1, 53721 Bonn, Germany. Email:

Background: To evaluate whether a quantitative curvature threshold can contribute to risk stratification of ductal stenting in patients with a duct-dependent pulmonary circulation (DDPC).

Methods: A single-center retrospective analysis was performed. The ductal curvature index (DCI) was calculated in 71 patients with DDPC. The ducts were divided into four classes based on quartile thresholds of DCI: class I (≤0.12), class II (0.13–0.33), class III (0.34–0.44), and class IV (≥0.45). The primary outcome of this study was defined as free from all of the following: (I) intervention related death, (II) need of unplanned surgery (III) need of unplanned pulmonary valve (PV) perforation with stent in right ventricular outflow tract (RVOT), and (IV) intervention related permanent complications.

Results: Eighty percent of patients in class IV (DCI ≥0.45) failed to achieve the primary outcome; odds ratio (OR) 9 and 95% confidence interval (CI): 3.7–21.4 compared to 26.6% in all classes with DCI <0.45. 66.7% of these patients needed unplanned surgery or PVP with RVOT stent; OR 12.4 (95% CI: 4–39). 80% of major complications were observed in class IV (P<0.01). Need of pulmonary arterioplasty was in class IV 53.3%; OR 3.3 (95% CI: 1.5–7.1).

Conclusions: DCI can be useful to guide the clinical decision-making in patients with torqued ducts. Patients with a DCI ≥0.45 belong to a high-risk group, in which ductal stenting is associated with an elevated risk for early surgery or unplanned re-intervention.

Keywords: Pulmonary atresia; ductus arteriosus; ductal stenting; pulmonary perfusion and ductal curvature index

Submitted Jan 12, 2021. Accepted for publication Mar 15, 2021.

doi: 10.21037/tp-21-17


All patients with a duct-dependent pulmonary circulation (DDPC) need an adequate pulmonary perfusion for survival. Although surgical techniques have advanced significantly in recent years (1), some biventricular heart diseases with DDPC remain unamenable to be corrected in the neonatal period due to variable reasons (2-5). Such cardiac defects and all other DDPC with a single ventricle require a palliative procedure to ensure a sufficient pulmonary perfusion until the next planned operation. Either a surgical creation of an aorta- pulmonary shunt or an interventional PDA stenting will be required for bridging to the next surgery. Multiple studies in the last decades have demonstrated safety and efficacy of duct stenting as an alternative to a surgical creation of modified Blalock-Taussig Shunt (mBT Shunt) (6-8). Stenting can spare patients the need for thoracotomy and reduce postoperative complications as well as asymmetrical development of pulmonary arteries. Additionally, it reduces the mortality rate and the need for extracorporeal membrane oxygenation (ECMO) (9-13). Despite the new developments in the field of coronary stents and the introduction of drug eluting stents that minimise in-stent stenosis and prolong the stent patency (12,14), stenting of ducts with increased tortuosity, especially when associated with pulmonary stenosis, is still challenging and fraught with risks (15-17).

Qureshi el al used a ductal classification scheme based on the tortuosity of the duct and found that patients with the highest tortuosity had increased the need of PDA stent re-intervention and pulmonary arterioplasty (18). No studies to date, however, have identified a ductal morphology index with a clear-cut threshold that defines patients with high risk who may not respond favourably to stenting. Such a clinical index would be essential to provide a predive ability and guide the management decisions.

In search of a clearly defined threshold value that could mark the risk of an inappropriate PDA stent, we tried, as part of this retrospective cohort analysis, to first create a quantitative ductal morphology index and, second, to examine whether the risk for complications and/or unplanned re-interventions can be estimated through this particular threshold.

We present the study in accordance with the STROBE reporting checklist (available at:


This is a single-center retrospective cohort analysis. All our consecutive patients with pulmonary atresia (PA) and DDPC undergoing PDA-stenting between Jan. 2011 and Oct. 2019 were recruited to evaluate the impact of their duct morphology on the stent outcome (diagnoses summarized in Table 1). Patients with PA and major aorta pulmonary collateral Arteries (MAPCAs) were excluded from the analysis as well as patients with pulmonary stenosis (PS) who have significant antegrade pulmonary perfusion.

Table 1
Table 1 Summarize of diagnosis, PDA characteristic and outcome in cohort study
Full table

The primary endpoint of this study was a composite outcome defined as free from all of following: (I) intervention related death, (II) need of unplanned surgery (III) need of unplanned PV-perforation (PVP) with RVOT-stent, and (IV) intervention related permanent complications. The occurrence of one or more of the endpoints was defined as an impaired outcome. DCI was calculated in all ducts using the following formula, which was adopted from a previous study (18): DCI = (L2-L1)/L2, where L1 represents the straight short distance between duct origin from aorta and duct insertion onto pulmonary arteries. L2 represents the entire length of the duct between the aortic origin and the insertion of the duct onto pulmonary arteries (Figure 1). The two measurements were documented in millimetres. To optimize L2 measurement, especially in ducts with looping, multiple projections were analyzed including anterior-posterior (AP), left anterior oblique (LAO), and right anterior oblique (RAO) views with cranial and caudal angulation. The L2 was then measured using the best projection which best demonstrated the entire duct and its multiple complex turns.

Figure 1 Demonstration of the two measured distances used to calculate the ductal curvature index. L1 represents the straight short distance between duct origin from aorta and duct insertion onto pulmonary arteries (PA). L2 represents the entire length of the duct between the aortic origin and the insertion of the duct onto PA.

The lower, median, and upper quartile values of the DCI in this patient cohort were used to classify the ducts into the following four classes: class I (≤ 0.12), class II (0.13–0.33), class III (0.34–0.44), and class IV (≥0.45) (Figure 2).

Figure 2 Demonstration of various ductal classes from the study patients. (A) Class III with ductal origin from underside of aortic arch; (B) class IV with origin from descending aorta; (C and D) class IV with ductal origin from underside of aortic arch; (E) class I with origin from descending aorta; (F) class II with origin from left brachiocephalic trunk.

Associated pulmonary arterial stenosis (PAS) was documented. Total lower lobe index (TLLI), Nakata index and McGoon index were used as pulmonary parameters to estimate the growth of pulmonary arteries at closest time before the next planned surgery or intervention.

Statistical analysis

All statistical analyses were performed using SPSS version 22. Continuous variables were reported as means ± standard deviations (SD), and categorical variables as count (percentage). Non-paired Student’s t-test was used to compare the means of continuous variables between the four different ductal morphology classes, while paired t-test was applied for comparing the means of pulmonary parameters before and after PDA stenting for the whole cohort. Chi square test was used for comparing categorical variables.

Odds ratios (ORs) ± 95% confidence intervals (95% CI) for the following parameters were calculated to assess any differences between the four ductal morphology classes: failure of stent-dependent survival (impaired outcome), need for PA arterioplasty, and need for unplanned surgery or RVOT-stent. A P value of 0.05 was set as the threshold for clinical significance. Kaplan-Meier survival curve of the four different classification classes was performed. The survival was defined according to the primary outcome i.e., arrival at the next planned surgery without death, permanent complications, or unplanned surgery/unplanned re-intervention in RVOT.

Ethical statement

The study complies with the Declaration of Helsinki (as revised in 2013). Owing to the purely retrospective study design, using available institutional clinical records, with an absence of impact on management of the patients included and completely anonymous data presentation, informed consent of the subjects (or their parents) and ethical approval have not been obtained.


A total of 96 stents were implanted in 71 ducts for patients with DDPC. All stents were bare metal stents (BMS). The stenting was performed retrograde in 59 (83.09%) and antegrade in 12 (16.91%) patients. At the intervention, mean weight was 3.3 kg (SD 0.68), median 3.2, range 3.2 (2–5 kg). Mean body surface area (BSA) was 0.20 m2 (SD 0.028), median 0.2, range 0.14 m2 (0.14–0.18). Mean age was 18 days (SD 23.18) median 7 (range, 1–120 days).

No significant differences were found between the ductal morphology class and any of the following: hospital deaths, vascular access, and number of stents (P>0.05). Statistically significant differences were identified between the four classes in each of the following: primary outcome, need of unplanned surgery or unplanned PV-perforation/RVOT-stent due to stent related inadequate pulmonary perfusion, pulmonary arterioplasty, origin of duct and in-stent re-intervention with P value <0.05 (Table 1).

Mortality and complications

No intervention-related mortality was reported in the catheterisation laboratory. Three hospital deaths (4.22%) were reported 1, 7 and 47 days after the intervention (2 patients with class II, one with class IV). The first one was born in preterm twin pregnancy (30 gestational age) and died due to a septic shock. The second patient required an unplanned stent implantation in RVOT one week after duct stenting due to low oxygen saturation. Following the procedure, the patient was decompensated and died on ECMO. The third was born in preterm twin pregnancy (33 gestational age) and died in the intensive care unit (ICU) due to infant respiratory distress syndrome (IRDS) and multi-organ failure before reaching the next planned surgery. Five major complications (7.04%) were reported; four in class IV and one in class I (Table 2). One patient had intervention-related permanent complications. This patient belonged to class IV and developed severe chronic neurologic complications associated with severe motoric retardation (Table 2). An impaired thrombophilia screening was reported in 40% of patients with in-stent thrombotic events. Three patients needed an emergency surgical shunt in the catheterisation laboratory during an in-stent re-intervention. Complete occlusion of the stent occurred while attempting to recanalize the stent in all of these patients; one of them needed ECMO.

Table 2
Table 2 Intervention related Major complications
Full table

Primary and secondary outcome results

The primary outcome in this study, defined earlier in the methods, was achieved in the majority of patients with DCI <0.45 (in class I, II, and III with 100%, 84.2%, and 94.4% success rate respectively) compared to only 20% of those with DCI ≥0.45 in class IV in which patients had very high risk of failure, odds ratio (OR) of 9 and 95% confidence interval (CI): 3.7–21.4. Need for unplanned surgery/PVP with RVOT-stent due to stent related insufficient pulmonary perfusion was reported in 13 patients, 10 (77%) of which from class IV with OR 12.4 (95% CI: 4–39), 2 (15.3%) from class II, and one (7.7%) from class III (Tables 1,3). A total of 9 patients (43.6%) needed unplanned in-stent re-intervention (5 of them in class IV and 2 in III and II respectively). Need of pulmonary arterioplasty due to duct associated pulmonary stenosis was observed in 18 patients (25.3% of total); eight in class IV with OR 3.3 (95% CI: 1.5–7.1), six in class III, three in class II, and one in class I. Fifty-six patients completed the next planned procedure: 51.8% univentricular and 48.2% biventricular. Pulmonary parameters showed significant increases in all of the 56 patients in whom the next planned procedure was achieved. Nakata index improved from a mean of 171 before to 286 mm2/m2 after stenting, McGoon index from 1.5 to 2.7, and TLLI from 90 to 169 mm2/m2) (P<0.001).

Table 3

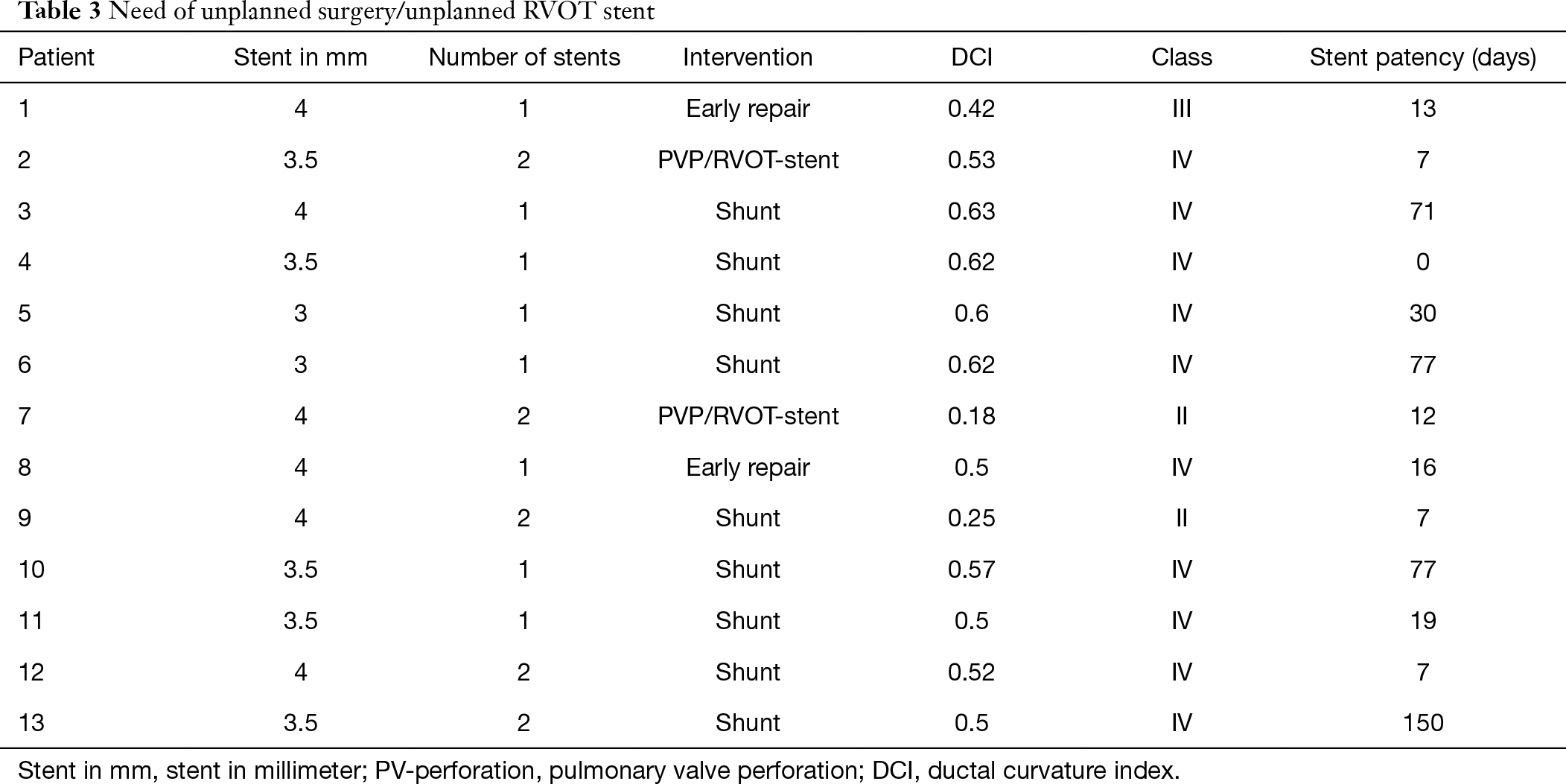

Table 3 Need of unplanned surgery/unplanned RVOT stent
Full table


Multiple formulas have been suggested to quantitatively measure the tortuosity of blood vessels in recent years (19) and this study adopted a formula of DCI that was previously used in a PDA-study (18). Calculating the DCI, we applied a ductal classification system on a cohort of patients with DDPC. The quartile approach was used to divide patients into four classes depending on their DCI-value, with the upper quartile threshold (DCI ≥0.45) defining class IV; the group with the highest curvature index.

High curvature index (class IV) and outcome

While the majority of patients with DCI <0.45 achieved the primary outcome, only 20% of patients with DCI ≥0.45 (class IV) achieved this endpoint in this study arriving uneventfully at their planned surgery. Class IV also, asymmetrically, represented more than 75% of all the cases that required unplanned surgery or unplanned PVP with RVOT-stent due to stent related inadequate pulmonary perfusion (Table 3). Additionally, almost half of all the patients requiring pulmonary arterioplasty due to duct associated pulmonary stenosis were found in class IV. Furthermore, all patients in this class needed either unplanned surgery/PVP and RVOT-stent or unplanned in-stent re-intervention. Early in coronary stent stenosis (ICS) and thrombosis, a phenomenon usually occurring in the elastic lamina, was highly observed in class IV of this cohort. Recoil and relocation of axially transmitted plaque have been suggested as potential causes of ICS (20,21). These two factors can be induced and speeded up by increased tortuosity, deployment of long stent, and stent deformation as well as stent overexpansion and under-expansion (22) The need for in-stent reintervention in the present study, which was more frequent in ducts with low curvature index, may be explained by in-stent restenosis, which can take place weeks or even months after the intervention due to thrombogenesis, neointima formation, and remodelling (20,21). We found that stent deformation and malposition were more often observed in patients whose ducts had increased DCI (class IV) making the in-stent reintervention a high-risk procedure in these patients.

The survival analysis demonstrated a clear and early dissociation between class IV and the rest of the classes with patients in the former group experiencing a sharp and mostly very acute outcome failure (Figure 3). Patients with DCI <0.45, however, had a much better survival rate with the majority reaching their next planned surgery.

Figure 3 Kaplan-Meier curve: Probability of stent-dependent survival. Compared with class IV which showed very low survival, patients with class I-III had a much better survival rates with the majority reaching their next planned surgery. PDA: patent ductus arteriosus.

Although some studies have demonstrated the safety and efficacy of duct stenting as an alternative to a surgical creation of mBT Shunt (8,23,24) very few have assessed the impact of ductal morphology on the duct stenting outcome (25,26). Qureshi et al. in 2019 described a new ductal morphological scheme based on ductal tortuosity classifying the ducts into three types: type I = straight, type II = one curve, and type III = multiple complex turns (18). Their results showed a significantly higher rate of pulmonary arterioplasty and unplanned reintervention in patients with type III. The latter observation is in agreement with the results of the present study that demonstrated a significantly greater need for pulmonary arterioplasy in patients with increased curvature Index (class IV). Comparison between the two cohorts was summarised in Table 4.

Table 4
Table 4 Distribution of ductal morphology: ductal curvature index classification versus ductal tortuosity index scheme
Full table

Although the mentioned study calculated the DCI and found it to be correlated with the tortuosity type, no cut-off values were provided for estimating the severity of the DCI in the previous report. In our cohort, we proposed a quantitative cut-off threshold (DCI ≥0.45) to estimate high-risk PDA-stenting.

Three-dimensional computed tomography (3D CT) and 3D echocardiography may offer more accurate calculation of the curvature index and should be considered in future studies.

A good understanding of the duct morphology and a correct selection of the best suitable vascular access based on the duct origin as well as the use of an appropriate soft-tipped guide-wire, which does not alter the ducts native course too much, but gives enough support to safely advance the stent [e.g., Mailman, comp], are essential to optimise the stenting outcome and minimize major complications. Also wire retraction is a critical moment, because of the soft ductal tissue. The use of a long sheath can help to stabilize the stent, while retrieving the wire.

It is also worth noting that a significant proportion of patients with thrombotic events in this cohort were found to have abnormal thrombophilic tests. Thrombophilia screening is, therefore, highly recommended prior to stenting to minimize thrombotic events especially in high risk patients.

Limitations: as a retrospective observational study potentially important secondary outcome measures could not be fully assessed. The single-center data collection limits the total number of patients to be recruited and reflects the ambitions and experiences of only a small number of interventionalists. Additionally, all stents used in this cohort were bare metal stents (BMS) and the results may not be applicable to drug eluted stents.


Ducts with a high ductal curvature index are associated with significant complications and are at higher risk to fail stenting compared to ducts with a lower curvature index. This study suggests that a clinical cut-off point based on the severity of ductal curvature may well identify high risk patients for stenting in whom the duct stenting may be insufficient to bridge them to the next planed surgery or intervention. The results indicate that class IV (DCI ≥0.45), represents a truly high-risk group of patients with unfavorable stenting outcome. In contrast, patients with curvature index lower than 0.45, which represents 75% of total cohort, have very satisfactory outcomes. A prospective study is needed to validate these results and see if the new curvature-based classification system can perform similarly in different cohorts.
